Tuning the Deceleration Brake on &JogUpdated a year ago

An advantage of the &Jog frame is that the deceleration brake can be tuned to your preference.  Adjust the left and right barrel adjuster to make the brake more or less sensitive.  Each can be tuned independently, since some left handed users prefer a slight bias toward the right, and some right handed users prefer a slight bias to the left.

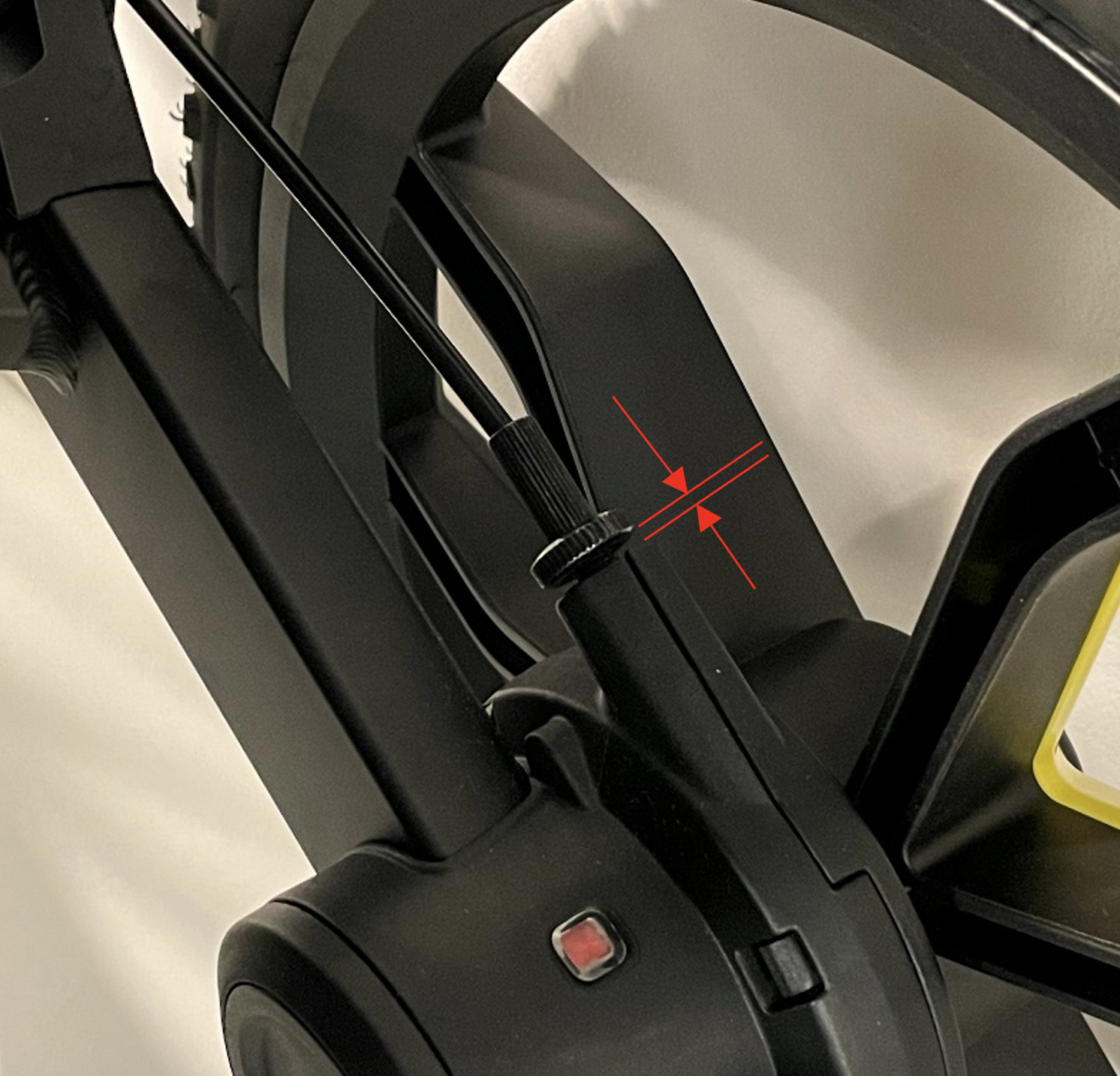

To make the brake more sensitive, turn the barrel adjuster counter-clockwise. You should see a gap created (or getting larger) between the brake housing and the lock nut. Start with a couple turns and then test to see if the desired sensitivity has been achieved.

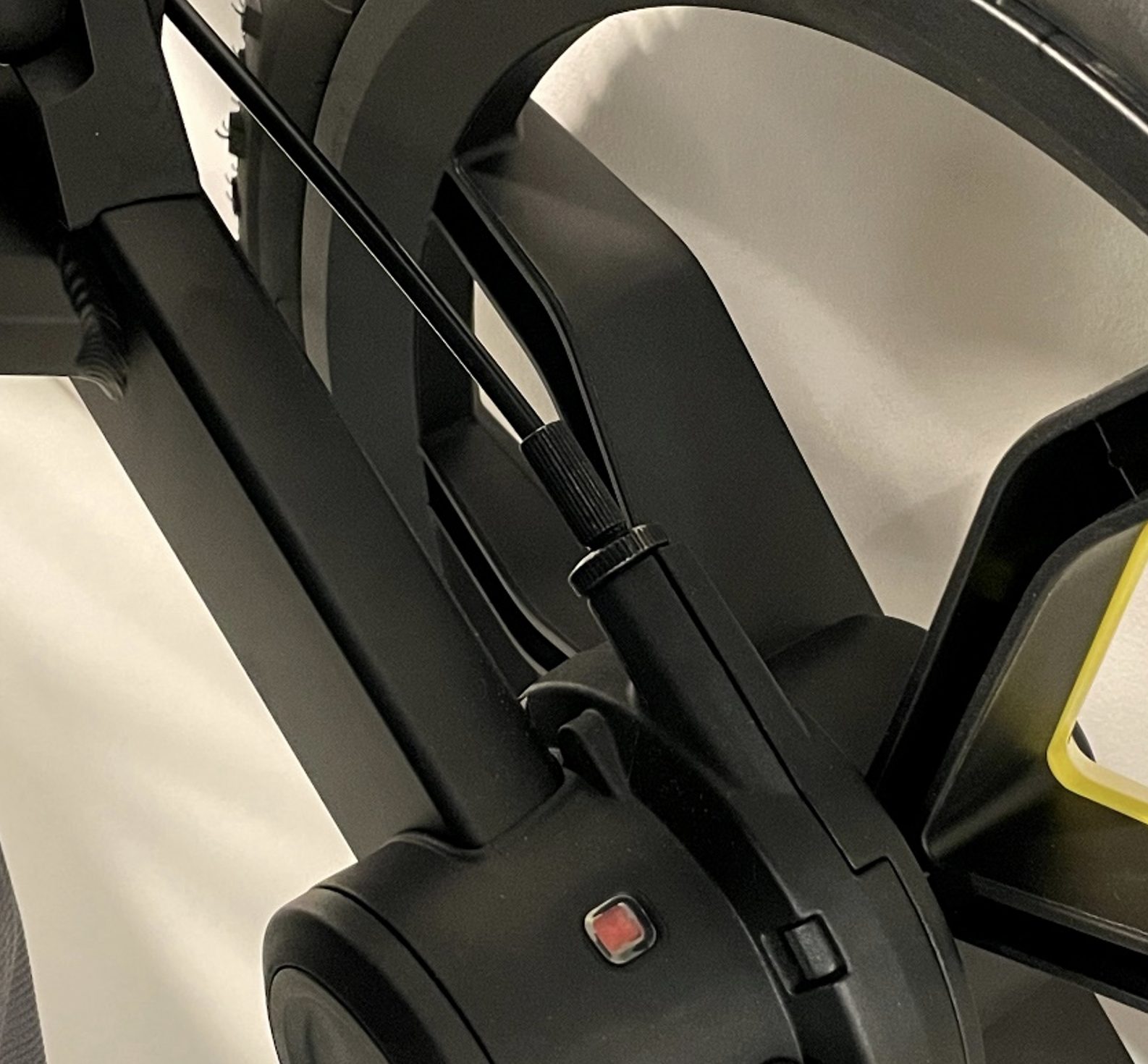

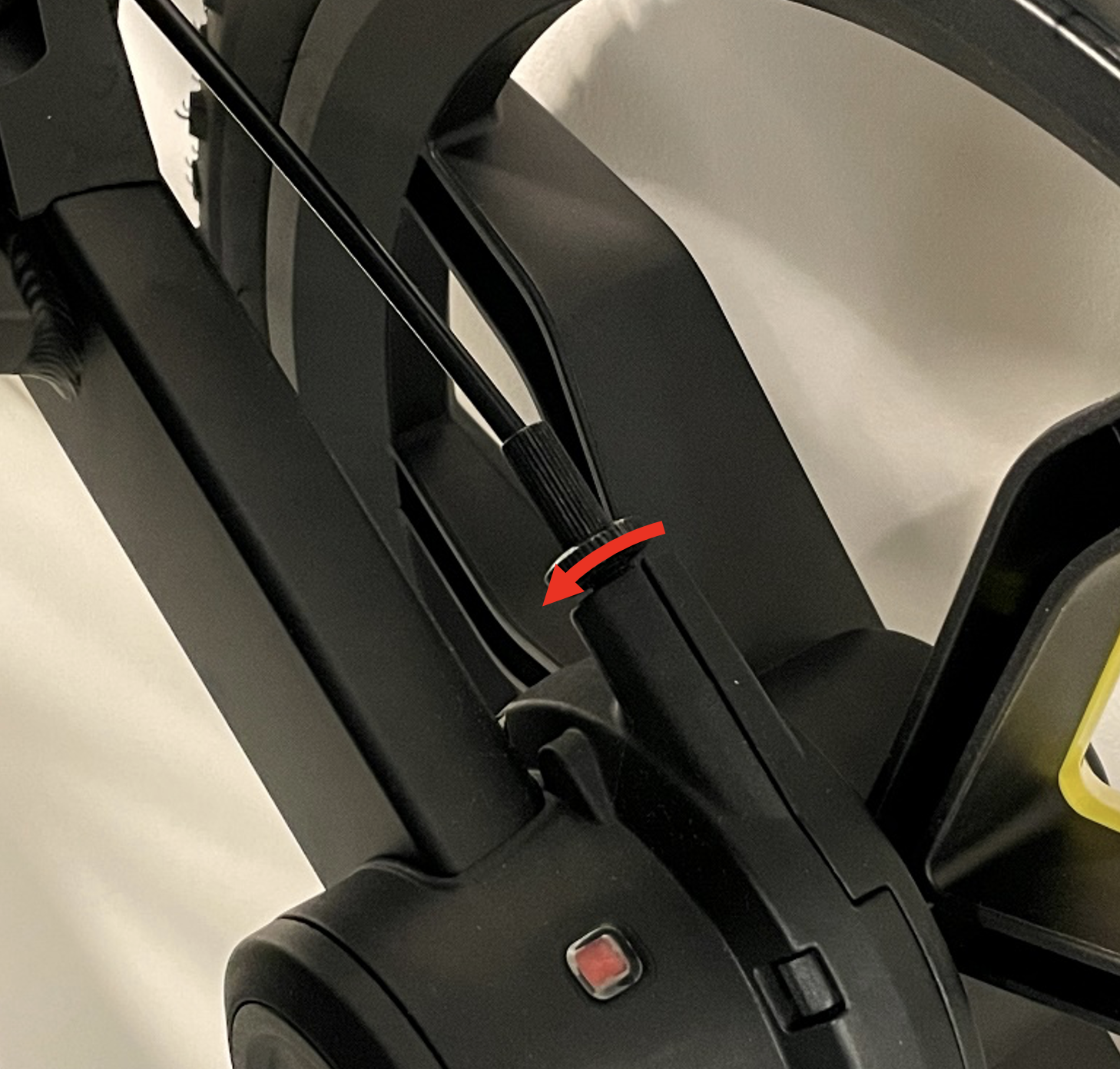

Once the desired sensitivity has been achieved, turn the lock nut clockwise until there is no gap between the brake housing and lock nut to lock the barrel adjuster in the new position. NOTE: You may have to hold the barrel adjuster in place as you turn the lock nut.
