Switchback SeatUpdated 15 days ago

First 5 minutes

New to the Switchback Seat/Switchback Seat Luxe? Here's the fastest path to a safe, comfortable ride.

Harness adjustments, calf support, canopy, and booster mode are covered in detail below.

Safety warnings — stroller & jogger use

+

Never leave children unattended. Failure to follow these warnings and instructions could result in serious injury or death.

  • Always use the Veer Switchback Seat with the &Roll stroller frame or &Jog jogger frame to create a complete Switch&Roll stroller or Switch&Jog jogger. Optional accessories are required for additional modes not covered in this instruction manual.
  • Never leave a child unattended in the Switch&Roll stroller or Switch&Jog jogger.
  • To prevent injury, children must remain seated with their arms and legs inside the Switch&Roll stroller or Switch&Jog jogger while riding.
  • This Switchback Seat is suitable for children from birth (with optional infant soft accessory) until the child is 50 lbs. (25 kg) and child height is 45" (101 cm) in single stroller mode. For double stroller mode (adapters sold separately), the Switchback Seat in the front (lower) position is suitable until the child is 40 lbs (18 kg).
  • The unit may become unstable if the manufacturer's recommended load is exceeded, or if a parcel bag or accessory other than that recommended by the manufacturer is used or hung from the unit.
  • Never park the Switch&Roll stroller or Switch&Jog jogger on a hill with children inside.
  • The brake must be locked while taking the child or children in or out of the Switch&Roll stroller or Switch&Jog jogger.
  • Always make sure the Switch&Roll stroller or Switch&Jog jogger is fully open and locked before use.
  • The Switch&Roll stroller or Switch&Jog jogger should never be used while ascending or descending stairs or using an escalator.
  • Do not make any alterations or modifications to the Switchback System with products not supplied by the manufacturer, as this may cause instability or structural damage not covered under warranty.
  • To avoid serious injury from falling or sliding out, passengers must always be seated while the Switch&Roll stroller or Switch&Jog jogger is in use and should always use the complete 5-point harness.
  • Arm bar must be attached at all times.
  • Always keep fingers away from moving parts when folding, unfolding, or adjusting the Switch&Roll stroller or Switch&Jog jogger to prevent entrapment or pinching.

This product is designed and manufactured to comply with ASTM F833 Standard Consumer Safety Performance Specification for Carriages and Strollers.

Safety warnings — booster seat use

+

Never leave children unattended. Failure to follow these warnings and instructions could result in serious injury or death.

  • Children have suffered head injuries, including skull fractures, after falling with or from booster seats.
  • Check that the booster seat is securely attached to an adult chair before each use.
  • Always use restraints until the child is able to get in and out of the booster seat without help. Adjust to fit snugly.
  • Never allow a child to push away from the table.
  • Never lift and carry a child in the booster seat.
  • Stay near and watch your child during use.
  • Attach this product to an adult chair using the bottom and back attachment straps.
  • Never use this product on a stool or bench that does not have a seat back.
  • Minimum adult chair seat depth of 15", seat width of 17", backrest height of 17".
  • Use only with a child who has enough upper body control to sit up unassisted.
  • Until the child is able to get in and out of the booster seat without help (about 2½ years old), the child should be secured in the booster seat at all times by the harness system. The arm bar (or optional tray) is not designed to hold the child in the chair.
  • Prevent serious injury or death: Do not use in motor vehicles.

This product is designed and manufactured to comply with ASTM F2640 Standard Consumer Safety Performance Specification for Booster Seats.

The Switchback Seat overview

+

The Switchback Seat has been crafted with the finest workmanship and highest quality materials. Every innovative detail was intentionally designed to give you the highest performance, superior functionality, and an incredible ride.

What's included

  • One-hand recline
  • Multi-position calf support
  • Removable arm bar
  • Easy remove and reverse
  • Canopy
  • Sunshade for extra sun protection
  • Booster seat mode straps and storage pocket
  • Booster seat strap anchors
  • Removable and machine-washable seat pad(s)
  • 5-point seat harness
  • Harness covers
  • Seat back suspension bumpers
  • Flexible rear seat for additional suspension
  • Seat back holes for improved ventilation

Using your Switchback Seat

+

Follow these steps to set up and use your Switchback Seat. Steps 1–6 cover core installation; steps 7–14 cover adjustments and booster mode.

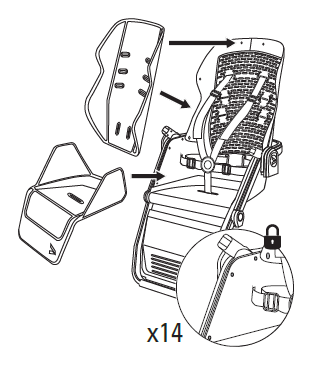

Install seat and back pads
1

Install seat & back pads

Seat pad: Pull the buckle strap through the slot in the seat pad, then fasten all eight connectors.

Back pad: Pull the waist and shoulder straps through the slots in the back pad, then fasten all six connectors.

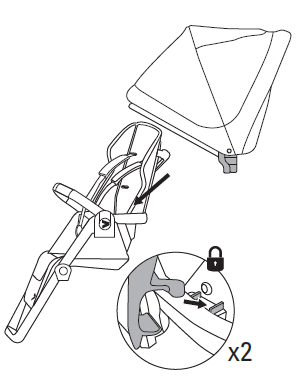

Attach canopy
2

Attach canopy

Click the canopy connector onto each side of the support bar.

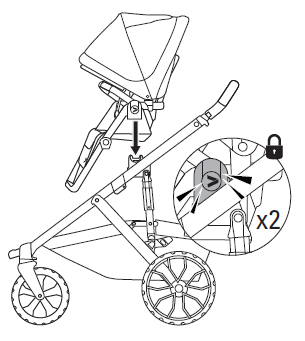

Attach to &Roll stroller frame
3

Attach to &Roll stroller frame

Lower the seat into the seat hubs until it clicks into place.

Pull up on the arm bar to confirm a secure connection.

Recline seat
4

Recline seat

Squeeze and slide the trigger on the seat back to adjust to one of four positions.

Release to lock in place.

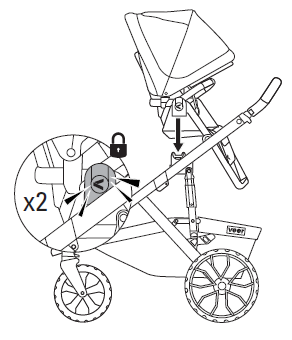

Remove or reverse seat
5

Remove or reverse seat

Press the seat hub buttons to release, then lift to remove.

To face the opposite direction, reverse and lower the seat into the stroller until it clicks into place.

Pull up on the arm bar to confirm a secure connection.

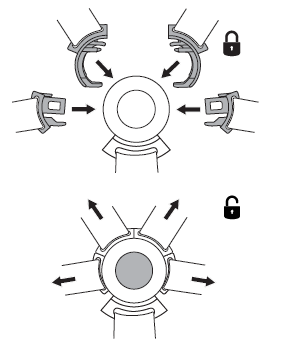

Buckle
6

Buckle

Attach the shoulder straps to the center buckle, then attach the waist straps.

To release, press the center button and pull out the straps.

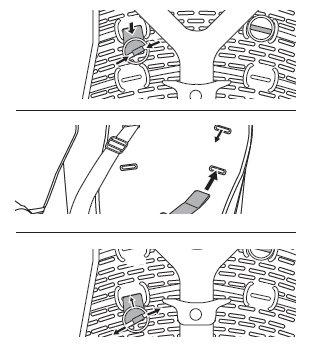

Adjust shoulder harness height
7

Adjust shoulder harness height

Remove the harness fastener, then unhook the strap. Pull the strap out from the seat and reinsert at the needed height.

Hook the strap on the harness fastener, then push the harness fastener into the seat to secure.

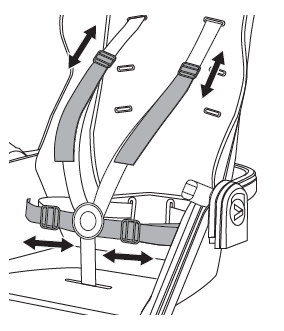

Adjust shoulder and waist harness
8

Adjust shoulder & waist harness

Slide the shoulder strap covers off to reveal the harness, then adjust to fit comfortably.

Adjust the waist straps to fit comfortably.

Adjust calf support
9

Adjust calf support

Press the calf support adjustment buttons to move the calf support to the desired position.

Release the buttons to lock in place.

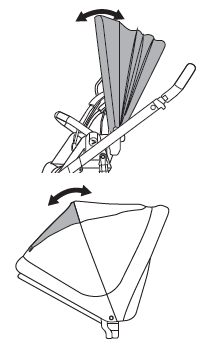

Adjust canopy and peekaboo window
10

Adjust canopy & peekaboo window

Canopy: Pull or push the front of the canopy to the desired position.

Peekaboo window: Flip the fabric panel forward to expose the window.

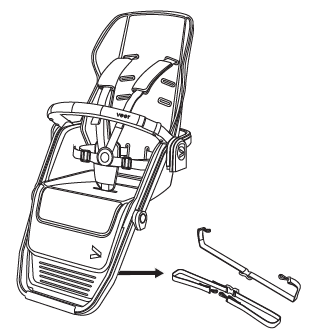

Use as a booster
11

Use as a booster

Remove the booster straps from the back of the Switchback Seat calf support.

See steps 12–14 to fold the calf support and attach the booster straps to a chair.

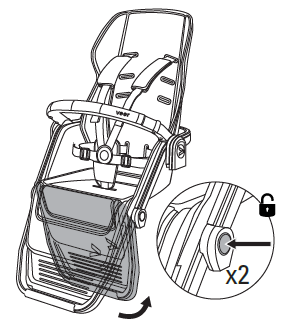

Fold calf support
12

Fold calf support

Press the calf support adjustment button to swing the calf support under the bottom of the seat.

Release the buttons to lock in place, then place on the chair.

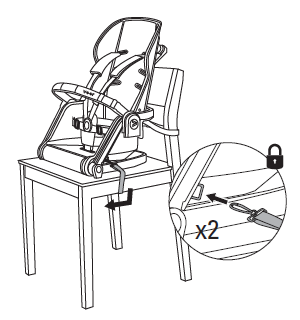

Attach bottom booster strap
13

Attach bottom booster strap

Attach one end of the shorter booster strap to one side of the seat, then feed the strap under the chair and attach the other end to the seat.

Adjust until it is secured tightly.

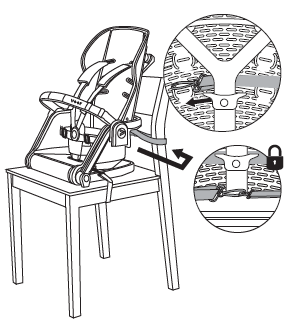

Attach back booster strap
14

Attach back booster strap

Thread the longer booster strap behind the center seat back post, then wrap around the back of the chair and clip the ends together.

Adjust until it is secured tightly.

Cleaning & maintenance

+

Storage

Store your Switchback Seat, Switch&Roll stroller, or Switch&Jog jogger in a location that is out of direct sunlight and environmental elements.

Frame, seats, handle grips & wheels

Wipe with a damp cloth and a mild detergent and dry thoroughly, or hose wash. Do not use abrasives.

If the Switchback Seat or any of the frames have been exposed to salt water, rinse with fresh (tap) water as soon as possible to avoid corrosion.

If exposed to sand, use a soft brush to gently brush sand from the Switch&Roll stroller or Switch&Jog jogger parts and cycle the components until the sand is ejected and they move freely.

For an all-over wash, remove accessories and wheels, then rinse with a hose. Allow to completely air dry.

Never use a power washer on any components of the Switchback System.

Removable Switchback soft seat pad

Wipe with a damp cloth and a mild detergent and dry thoroughly. Do not use abrasives.

The seat pad may also be removed for machine washing on a gentle cycle in cold water with mild detergent. Dry flat and away from direct sunlight before re-use or storage.

Do not bleach, iron, or dry clean.

Routine check-up

The Switchback Seat, &Roll frame, and &Jog frame require routine user maintenance. Regularly check all connecting hardware (rivets, screws, etc.) for tightness and security. Inspect the brake, wheels, and tires and replace or repair as necessary.

Check all safety devices, locks, and harnesses for correct and secure operation. Never continue to use a product that is structurally unsound.

Only Veer replacement parts should be used. It may be unsafe to use parts supplied by another manufacturer.

Contact Customer Service with any repair or maintenance questions at 470-344-3200 or [email protected].

Limited warranty

+

We've got you covered

The Switchback Seat is guaranteed to be free from any manufacturing defects for a period of 2 years from the date of purchase under normal use and in compliance with the operating instructions.

This warranty is not transferable and extends only to the original retail purchaser and is only valid when supplied with proof of purchase.

Please retain proof of purchase for this limited warranty.

The warranty is valid only in the original country of purchase. This warranty is subject to the conditions set out by the country in which the items were purchased. Conditions may vary. Veer will not ship replacement or repair parts out of the country of purchase.

Veer will provide replacement parts or conduct repairs if deemed appropriate by the company. Veer reserves the right to exchange an item for a replacement part. Some parts may be replaced with newer model parts as the Switchback Seat is improved over time.

For full warranty details, visit goveer.com

Contact & support

Phone: 470-344-3200 · Email: [email protected]
