Switchback Adapter for Cruiser & Cruiser XLUpdated 4 months ago

Guide de l’utilisateur

SWITCHBACK SEAT ADAPTER FOR CRUISER AND CRUISER XL USER GUIDE


WARNING

NEVER LEAVE YOUR CHILD UNATTENDED. FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

ENSURE THAT ALL THE LOCKING DEVICES ARE ENGAGED BEFORE USE.

TO AVOID INJURY, ENSURE THAT YOUR CHILD IS KEPT AWAY WHEN UNFOLDING AND FOLDING THIS PRODUCT.

DO NOT LET YOUR CHILD PLAY WITH THIS PRODUCT.

ALWAYS USE THE RESTRAINT SYSTEM.

CHECK THAT THE PRAM BODY OR SEAT UNIT OR CAR SEAT ATTACHMENT DEVICES ARE CORRECTLY ENGAGED BEFORE USE.

THIS PRODUCT IS NOT SUITABLE FOR RUNNING OR SKATING.

NEVER USE SWITCHBACK ADAPTER AS A HANDLE TO LIFT THE CRUISER.

NEVER PLACE CHILD IN SWITCHBACK SEAT OR BASSINET BEFORE YOU HAVE FIRMLY ATTACHED THE SEAT TO THE CRUISER.

NEVER REMOVE SWITCHBACK SEAT OR BASSINET FROM THE CRUISER FRAME WITH CHILD IN SEAT.

ALWAYS VERIFY THE ADAPTER IS CORRECTLY INSTALLED ONTO THE CRUISER BEFORE INSTALLING A SWITCHBACK SEAT OR BASSINET.

UP TO MAXIMUM WEIGHT OF 40 LBS FOR SWITCHBACK SEAT OR 20 LBS FOR BASSINET.

ALWAYS USE SWITCHBACK SEAT OR BASSINET RESTRAINT SYSTEM AS RECOMMENDED BY MANUFACTURER.

NEVER USE THIS PRODUCT IF THERE ARE ANY MISSING OR BROKEN PARTS. CONTACT VEER GEAR FOR REPLACEMENT PARTS AND NEVER USE SUBSTITUTE PARTS.

THE VEER CRUISER WITH A SWITCHBACK SEAT OR BASSINET ATTACHED DOES NOT REPLACE A COT OR A BED. SHOULD YOUR CHILD NEED TO SLEEP, THEN IT SHOULD BE PLACED IN A SUITABLE PRAM BODY, COT OR BED.

WARNING: DO NOT USE IN CONJUNCTION WITH SWITCHBACK ICS ADAPTER.



SWITCHBACK ADAPTER FOR CRUISER AND CRUISER XL OVERVIEW

This adapter is intended for use with the Switchback Seat or Bassinet when used on the Veer Cruiser or Cruiser XL. Visit www.goveer.com for specific car seat model compatibility.


CLEANING & GENERAL MAINTENANCE

Wipe with a damp cloth and dry thoroughly. For a more thorough cleaning, rinse with a hose or hand wash with a mild detergent and dry thoroughly. Do not use abrasives. Do not put in dishwasher.




LIMITED WARRANTY

We’ve got you covered!

This accessory is guaranteed to be free from any manufacturing defects for a period of 1 year from the date of purchase under normal use and in compliance with the operating instructions.

This warranty is not transferable and extends only to the original retail purchaser and is only valid when supplied with proof of purchase.

PLEASE RETAIN PROOF OF PURCHASE FOR THIS LIMITED WARRANTY.

The warranty is valid only in the original country of purchase. This warranty is subject to the conditions set out by the country in which the items were purchased. Conditions may vary. VEER will not ship replacement or repair parts out of the country of purchase.

Veer will provide replacement parts or conduct repairs if deemed appropriate by the company.

Veer reserves the right to exchange an item for a replacement part. Some parts may be replaced with newer model parts as the Switchback is improved over time.

Please note that a repair issue will NOT be covered by this warranty if:

  • The issue is caused by misuse or improper/poor maintenance. Please refer to this instruction booklet for guidance on use and Switchback assembly and use.
  • Damage is corrosion, mold or rust caused by a lack of maintenance or service.
  • Damage is due to general wear and tear, which is the result of everyday use or negligence.
  • Damage is caused by the intensity of the sun, sweat, detergents, damp storage or frequent washing.
  • Repairs or modifications are carried out by a third party.
  • This Switchback accessory is purchased from an unauthorized retailer. Approved retailers are listed on our website at goveer.com.
  • This Switchback accessory is second-hand.
  • This Switchback accessory is damaged as a result of an accident, airline or freight damage.

Veer reserves the right to determine whether or not the terms and conditions of the warranty have been met. Please contact Veer should you have any questions regarding your warranty.

For full set of warranty details, visit goveer.com



USING YOUR SWITCHBACK SEAT ADAPTER

ADAPTER NOTE


The Cruiser XL adapter looks different than the Cruiser adapter, but both adapters function the same way. The Cruiser adapter is shown throughout this User Guide.

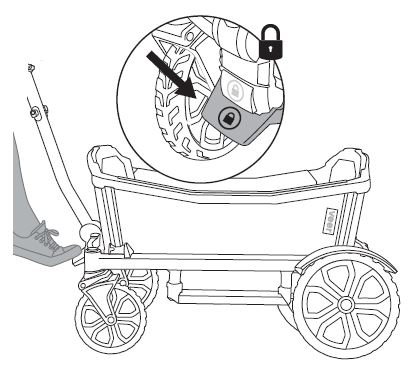

01. SECURE CRUISER

Press gently on the parking device.

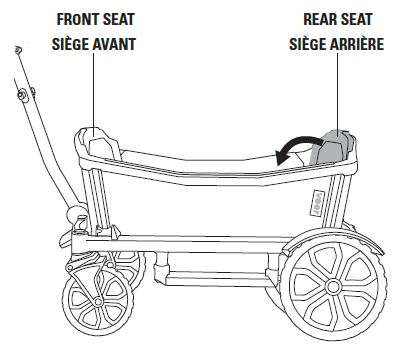

02.  FOLD DOWN CRUISER SEAT BACK

Required if Switchback Seat will be installed in rear position, facing outward (see B, D, F below) or Bassinet will be installed facing inward (see H below).

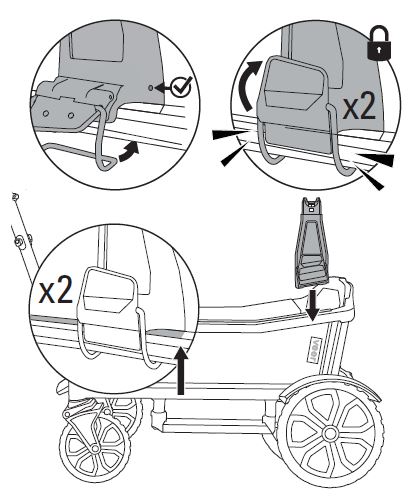

03.  ATTACH ADAPTER (ONE PER SWITCHBACK SEAT OR BASSINET)



Orientate the adapter so the gray dots face the seat back and place the adapter on the Cruiser sidewalls. The adapter shall be positioned at the end of the fabric side walls.

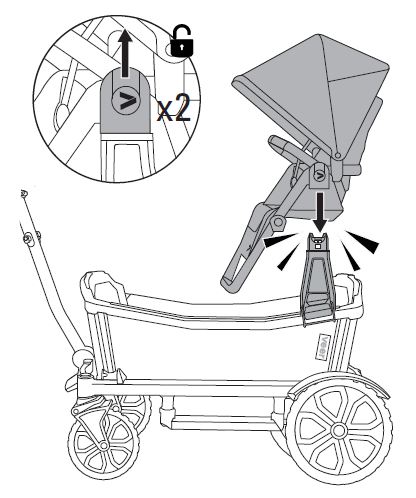

04.  INSTALL SWITCHBACK SEAT

Lower Switchback Seat onto adapters until it clicks into place. Listen for audible click. Pull up to confirm secure connection.

REMOVE: Press seat hub buttons to release, then lift to remove.


05. CHOOSE YOUR POSITION

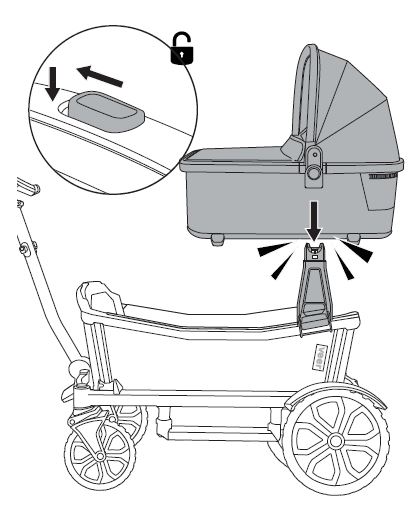

INSTALL BASSINET

Lower Bassinet onto adapters until it clicks into place. Pull up to confirm secure connection.

REMOVE: Slide and press the button on top of handle, then lift to remove.

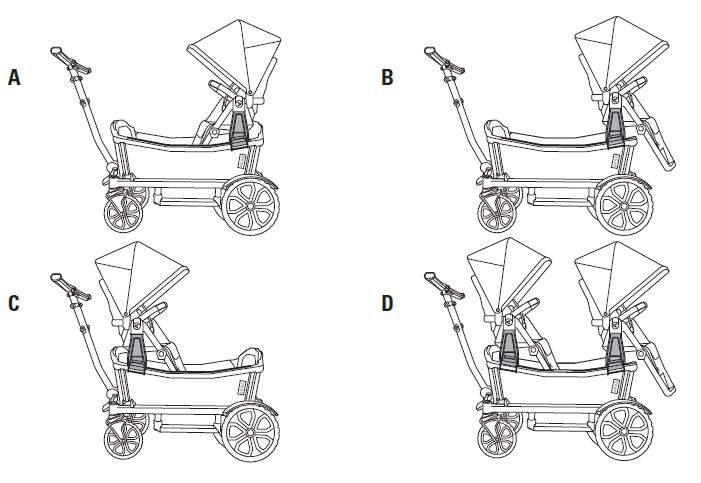

SWITCHBACK SEAT(S)

A. Rear seat, facing inward

B. Rear seat, facing outward (seatback down)

C. Front seat, facing inward

D. Front seat, facing inward and rear seat, facing outward (seatback down)


SWITCHBACK SEAT + INFANT CAR SEAT OR BASSINET

E. Car Seat in front seat, facing outward and Switchback seat in rear seat, facing inward

F. Car Seat in front seat, facing outward and Switchback seat in rear seat, facing outward (seatback down)

G. Switchback seat in front seat, facing inward and Car Seat in rear seat, facing inward

H. Bassinet in rear seat, facing inward (seatback down)


P/N: D00172303
