SunshadeUpdated 4 days ago
First 5 minutes
New to the Sunshade? Here's the fastest path from box to shade.
Height adjustment, sun angle, and disassembly are covered separately below.
Safety warnings
+−
Never leave your child unattended. Failure to follow these warnings and instructions could result in serious injury or death.
Before each use
- Ensure that all locking devices are engaged before use.
- To avoid injury, ensure your child is kept away when unfolding and folding this product.
- Do not let your child play with this product.
- Always use the restraint system.
Canopy use
- Do not use Infant Car Seat Adapter or Switchback Adapter attached to side of Cruiser.
- This product is not suitable for running or skating.
- Never use canopy bar as a handle to lift the Cruiser.
- Never place any unapproved objects on top of canopy.
- Never hang any objects from canopy into child space.
- Canopy is suitable for children up to 114 cm (45 in) tall.
Parts & replacement
- Never use this product if there are any missing or broken parts. Contact Veer for replacement parts and never use substitute parts.
What's in the box
+−
Included in your package
- Fabric shade
- Clamps (4)
- Upper frames (2)
Compatibility
+−
Which Sunshade fits your Cruiser?
The Sunshade comes in two sizes — make sure you have the right one before installing.
- Sunshade (2-seat) — fits the standard Cruiser 2-seat wagon. Measures 40.5″ L × 20.5″ W and weighs 2.2 lbs.
- Sunshade XL (4-seat) — fits the Cruiser XL 4-seat wagon. Measures 40.5″ L × 24.5″ W and weighs 2.4 lbs.
Both versions adjust in height between 29″ and 32″ from the seat bottom to the shade, accommodating children up to age 8 (114 cm / 45 in tall).
Works with
The Sunshade is compatible with the following Veer accessories:
- Foldable Storage Basket
- Cargo Nets
- Nap System
- Cruiser Rack
- Comfort Seat for Toddlers
- Shearling Seat Cover
Not compatible with: Retractable Canopy, Infant Car Seat Adapters, or Switchback Adapters.
Using your Sunshade
+−
Follow these steps to install and use your Sunshade. Always lock the Cruiser brake before attaching or adjusting the Sunshade.

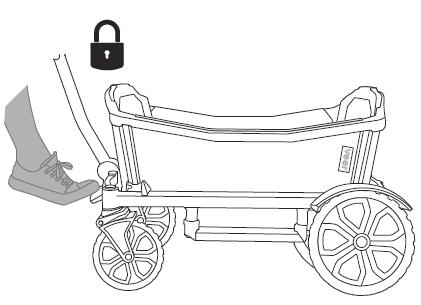

Lock brake
Lock the Cruiser brake before beginning installation.

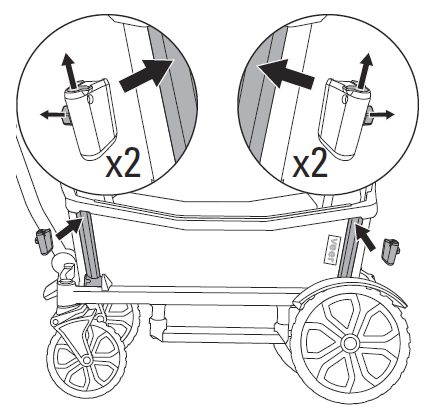

Orient clamps
Arrange clamps at the corners of the Cruiser, ensuring each clamp's knob faces outward and the frame opening is on top.

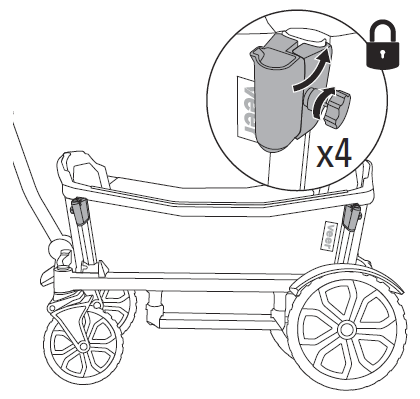

Secure clamps
Loosen the knob on each clamp, slide it over the side wall tube, then tighten.
✓ All four clamps should be snug with knobs facing outward.

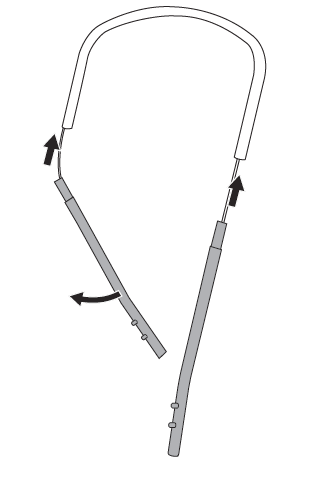

Assemble upper frame
Align the upper frame joints and slide them together.

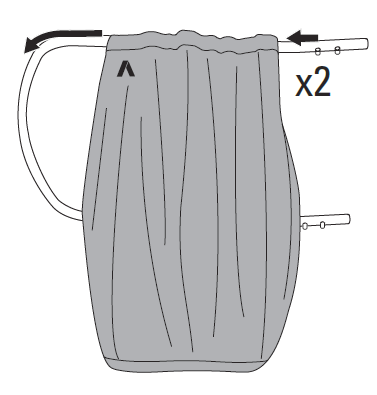

Attach tunnels
Slide the fabric shade over the upper frames.
Ensure release buttons face inward and the "V" logo is on the outside.

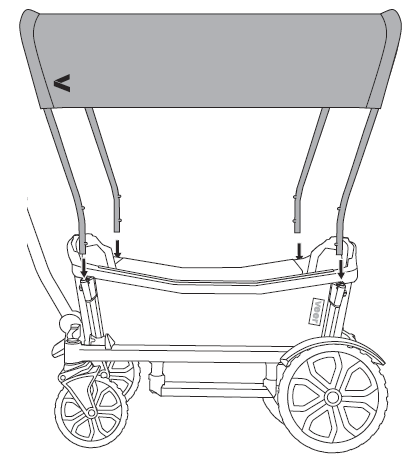

Connect upper frame
Slide the ends of the upper frames into the clamps until the release buttons click into place.
✓ You should hear and feel a distinct click on each side.

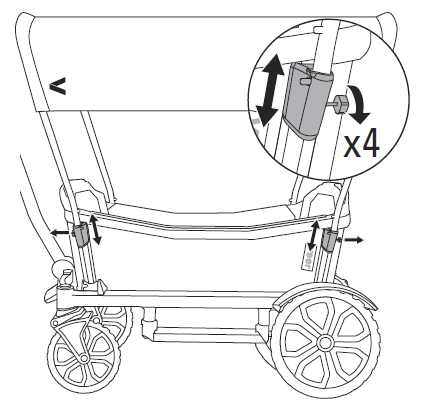

Adjust sunshade height
To adjust the sunshade height, loosen the knob on each clamp and slide along the side wall tube to the desired height, then retighten.
Adjust for sun angle
Slide the fabric shade along the upper frame to adjust the angle, ensuring maximum shade for your child.
Disassemble

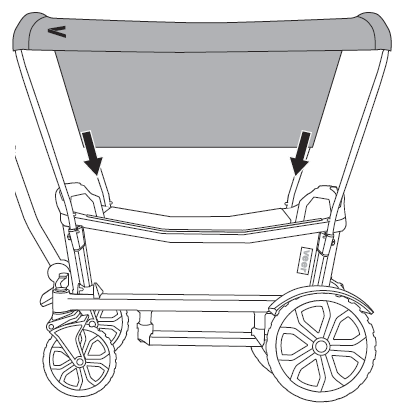

Loosen fabric tension by bunching the Sunshade toward the center, then disconnect the poles.
Cleaning & maintenance
+−
Routine cleaning
Wipe with a damp cloth and dry thoroughly.
Deep cleaning
For a more thorough cleaning, rinse with a hose or hand wash with a mild detergent and dry thoroughly.
Do not use abrasives. Do not use bleach, iron, or dry clean.
Limited Warranty
+−
We've got you covered
This accessory is guaranteed to be free from any manufacturing defects for a period of 1 year from the date of purchase under normal use and in compliance with the operating instructions.
This warranty is not transferable and extends only to the original retail purchaser and is only valid when supplied with proof of purchase.
Please retain proof of purchase to activate this limited warranty.
The warranty is valid only in the original country of purchase and is subject to the conditions set out by the country in which the items were purchased. Conditions may vary. Veer will not ship replacement or repair parts out of the country of purchase.
Veer will provide replacement parts or conduct repairs if deemed appropriate by the company. Veer reserves the right to exchange an item for a replacement part. Some parts may be replaced with newer model parts as the Cruiser is improved over time.
What's not covered
A repair issue will not be covered by this warranty if:
- The issue is caused by misuse or improper/poor maintenance.
- Damage is caused by improper installation of Veer parts and/or accessories.
- Damage is corrosion, mold, or rust caused by a lack of maintenance or service.
- Damage is due to general wear and tear resulting from everyday use or negligence.
- Damage is caused by the intensity of the sun, sweat, detergents, damp storage, or frequent washing.
- Repairs or modifications are carried out by a third party.
- This Cruiser accessory is purchased from an unauthorized retailer. Approved retailers are listed at goveer.com.
- This Cruiser accessory is second-hand.
- This Cruiser accessory is damaged as a result of an accident, airline, or freight damage.
Veer reserves the right to determine whether or not the terms and conditions of the warranty have been met. Please contact Veer with any warranty questions.
For full warranty details, visit goveer.com
Contact & support
Phone: 470-344-3200 · Email: [email protected]
