SmartBin for Hauler User Guide

We hope you enjoy your adventures as much as we enjoyed dreaming and building the Hauler. Please review these instructions carefully prior to assembly and use and you will be on your way to move like a family that goes.


Safety warnings

+−

NOT INTENDED FOR USE WITH CHILDREN.

IMPORTANT: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • No person—adult or child—may ride in a SmartBin. For child passengers, use the Veer Cruiser.
  • Loads in Large SmartBins must not exceed 100 lbs. in the first (bottom) bin, 50 lbs. in the second stacked bin, and 25 lbs. in the third (top) bin. Loads in Small SmartBins must not exceed 50 lbs. (at any level). Do not stack SmartBins more than three high. [Does the max weight for the Small SmartBin change for each level?]
  • Secure loads with the Bungee Kit or Tie Downs before traveling.
  • Do not exceed the Hauler frame rating of up to 500 lbs. when pulling or up to 300 lbs. when pushing on smooth, hard, flat ground.
  • Keep fingers clear of the walls when collapsing a SmartBin.
  • If your dog rides in a SmartBin, bungee the SmartBin to the Hauler, keep the pace to a walk and never leave the dog unattended.

Before every use

  • Confirm all four wheels are fully seated and locked.
  • Confirm the handle is locked upright before using.
  • Engage the foot brake before loading, unloading or leaving the Hauler standing.
  • Check the frame, wheels, brake and Smartbins. Do not use with damaged or missing parts.

Installing the SmartBin

+−

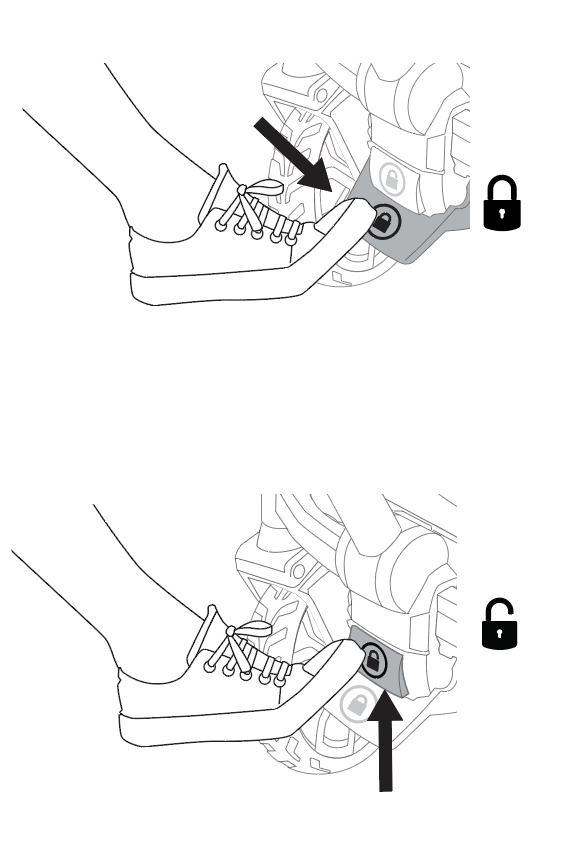

Set foot brake
1

Set foot brake
To set brake, press gently until it clicks.
To release brake, gently kick toe plate.

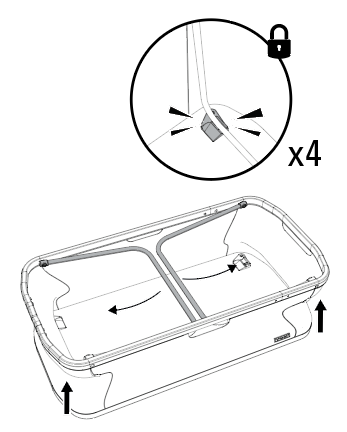

Expand SmartBin
2

Expand SmartBin
Push two inner tubes down to bottom of SmartBin until locked into latches.

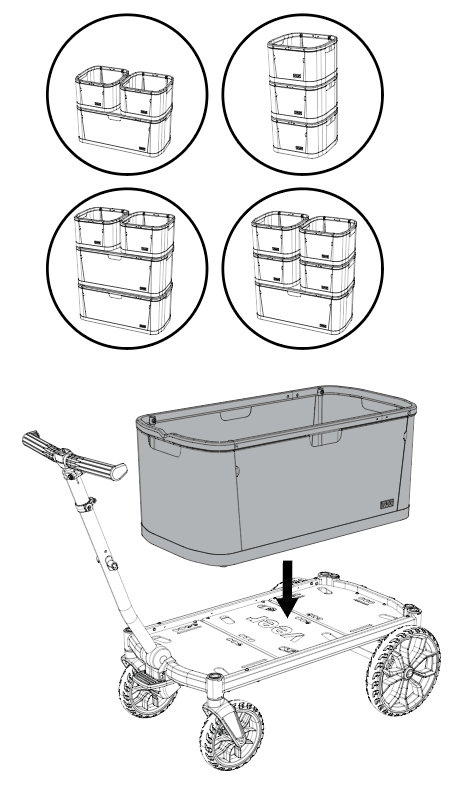

Position SmartBin
3

Position SmartBin
Place SmartBin with the angled feet on the Hauler.

NOTE: You can place one Large or two Small SmartBins in each row.

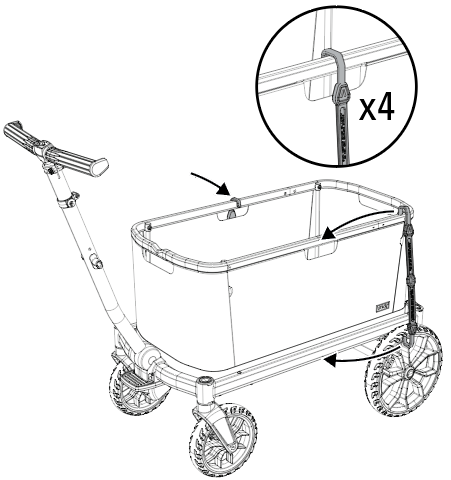

Secure SmartBin
4

Secure Large SmartBin
On each side, hook a bungee over rim of SmartBin and under Hauler SmartDeck.

NOTE: You can place one Large or two Small SmartBins in each row.

Stacking multiple SmartBins

+−

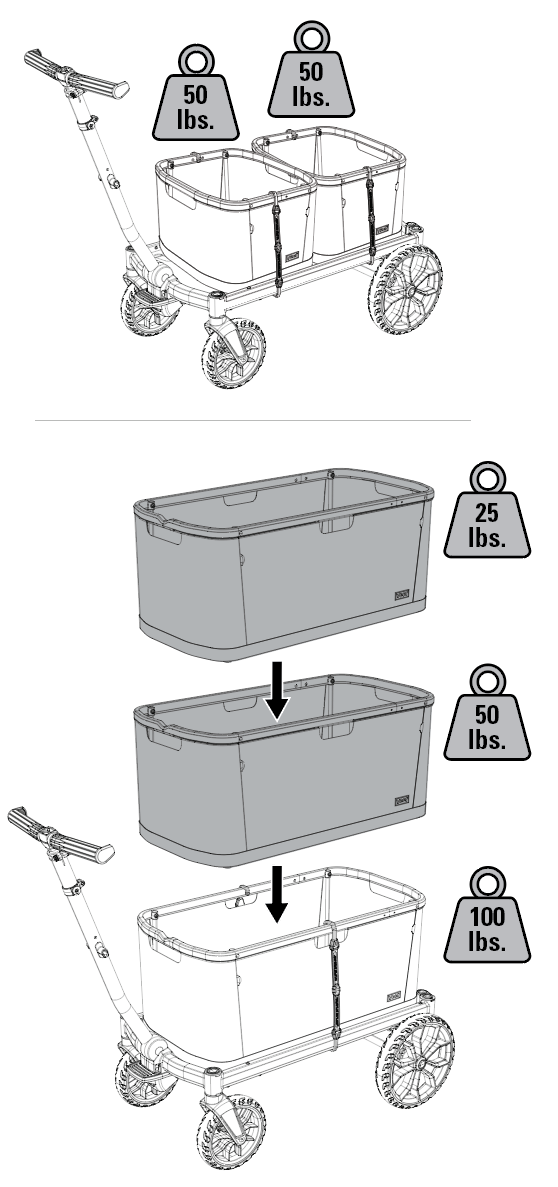

Maximum load
1

Position SmartBins
Stack additional SmartBins on Hauler (up to three high). Do not exceed the maximum load for each bin.

NOTE: Do not exceed 100 lbs. in bottom SmartBin.

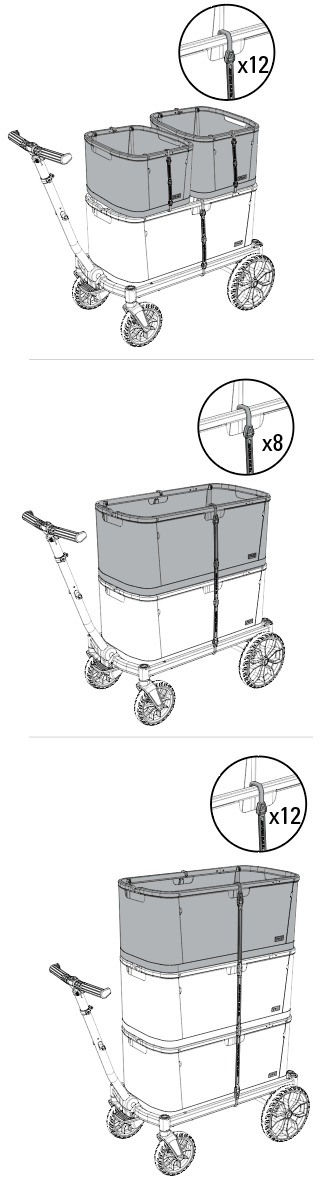

Secure SmartBin
2

Secure SmartBin stack
On each side, hook a bungee over rim of top SmartBin under Hauler SmartDeck.

NOTE: Whether using one or multiple SmartBins, always secure with bungees.

Cleaning, maintenance, and check-up

+−
  • If exposed to salt water, rinse thoroughly with fresh (tap) water as soon as possible to avoid frame corrosion.
  • Vacuum or brush away excess sand or dirt.
  • Wipe fabric with a damp cloth and a mild detergent, then dry thoroughly. Do not use abrasives.
  • Dry bins open and away from direct sunlight before use or storage. Do not bleach, iron or dry clean.
  • For an all-over wash, rinse with a hose. Air dry completely before reattaching.
  • Never use a power washer on the SmartBins.

Limited warranty

+−

We've got you covered

This product is guaranteed to be free from any manufacturing defects for a period of 2 years from the date of purchase under normal use and in compliance with the operating instructions.

This warranty is not transferable and extends only to the original retail purchaser, and is only valid when supplied with proof of purchase. Please retain your proof of purchase for this limited warranty.

Coverage details

The warranty is valid only in the original country of purchase and is subject to the conditions set out by that country. Conditions may vary. Veer will not ship replacement or repair parts out of the country of purchase.

Veer will provide replacement parts or conduct repairs if deemed appropriate by the company. Veer reserves the right to exchange an item for a replacement part. Some parts may be replaced with newer model parts as the product is improved over time.

What's not covered

A repair issue will not be covered by this warranty if:

  • The issue is caused by misuse or improper / poor maintenance. Please refer to this instruction booklet for guidance on use and maintenance.
  • Damage is caused by improper installation of Veer parts and/or accessories. Please refer to this instruction booklet for guidance on assembly and use.
  • Damage is corrosion, mold, or rust caused by a lack of maintenance or service.
  • Damage is due to general wear and tear from everyday use or negligence.
  • Damage is caused by sun intensity, sweat, detergents, damp storage, or frequent washing.
  • Repairs or modifications are carried out by a third party.
  • The product is purchased from an unauthorized retailer. Approved retailers are listed at goveer.com.
  • The product is second-hand.
  • The product is damaged as a result of an accident, airline, or freight damage.

Veer reserves the right to determine whether the terms and conditions of the warranty have been met. For full warranty details, visit goveer.com.

Need help? Email [email protected].
