COLOR KIT USER GUIDE
WARNING
NEVER LEAVE CHILDREN UNATTENDED. FAILURE TO FOLLOW THESE WARNINGS AND INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
Ensure that all the locking devices are engaged before use.
To avoid injury, ensure that your child is kept away when unfolding and folding this product.
Do not let your child play with this product.
Always use the restraint system.
This product is not suitable for running or skating.
Never use this product if there are any missing or broken parts. Contact Veer for replacement parts and never use substitute parts
CLEANING & GENERAL MAINTENANCE
CANOPY:
Wipe with a damp cloth and a mild detergent and dry thoroughly. DO NOT use abrasives.
REMOVABLE SWITCHBACK SOFT SEAT:
Wipe with a damp cloth and a mild detergent and dry thoroughly. DO NOT use abrasives.
Seat Pad may also be removed for machine washing on gentle cycle in cold water with mild detergent. Dry flat and away from direct sunlight before re-use or storage. DO NOT bleach, iron or dry clean.
LIMITED WARRANTY
We’ve got you covered!
This accessory is guaranteed to be free from any manufacturing defects for a period of 1 year from the date of purchase under normal use and in compliance with the operating instructions.
This warranty is not transferable and extends only to the original retail purchaser and is only valid when supplied with proof of purchase.
PLEASE RETAIN PROOF OF PURCHASE FOR THIS LIMITED WARRANTY.
The warranty is valid only in the original country of purchase. This warranty is subject to the conditions set out by the country in which the items were purchased. Conditions may vary. VEER will not ship replacement or repair parts out of the country of purchase.
Veer will provide replacement parts or conduct repairs if deemed appropriate by the company.
Veer reserves the right to exchange an item for a replacement part. Some parts may be replaced with newer model parts as the Switchback is improved over time.
Please note that a repair issue will NOT be covered by this warranty if:
- The issue is caused by misuse or improper/poor maintenance. Please refer to this instruction booklet for guidance on use and maintenance.
- Damage is caused by improper installation of VEER parts and/or accessories. Please refer to this instruction booklet for guidance on Switchback assembly and use.
- Damage is corrosion, mould or rust caused by a lack of maintenance or service.
- Damage is due to general wear and tear, which is the result of everyday use or negligence.
- Damage is caused by the intensity of the sun, sweat, detergents, damp storage or frequent washing.
- Repairs or modifications are carried out by a third party.
- This Switchback accessory is purchased from an unauthorized retailer. Approved retailers are listed on our website at goveer.com.
- This Switchback accessory is second-hand.
- This Switchback accessory is damaged as a result of an accident, airline or freight damage.
Veer reserves the right to determine whether or not the terms and conditions of the warranty have been met. Please contact Veer should you have any questions regarding your warranty.
For full set of warranty details, visit goveer.com
INSTALLING YOUR SWITCHBACK COLOR KIT

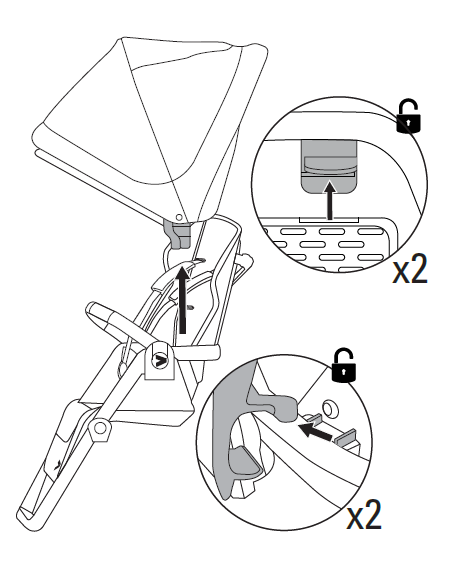

01. REMOVE CANOPY
Push canopy back tabs up, then pull up on side connectors to detach from support bar.

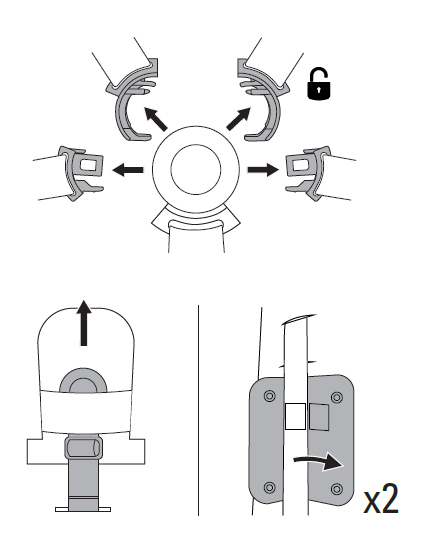

02. REMOVE HARNESS & SHOULDER COVERS
Open arm bar and unbuckle harness.
Slide harness buckle cover up and off. Unsnap and remove shoulder covers.

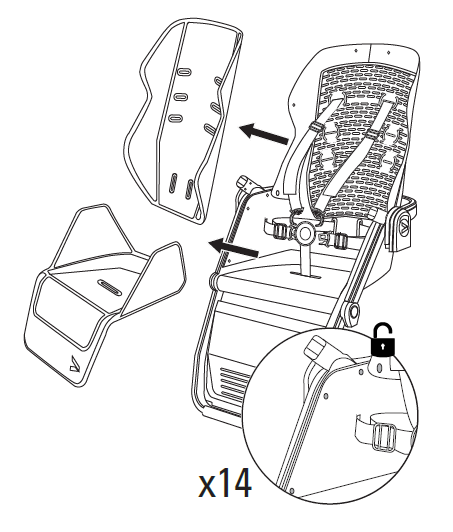

03. REMOVE SEAT & BACK PAD
Unfasten seat and back pad connectors, then pull harness straps out through slots.

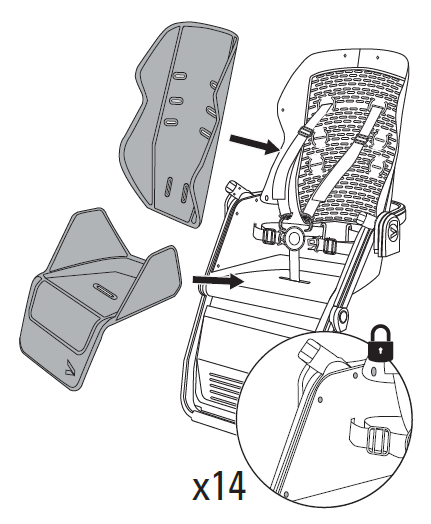

04. INSTALL NEW SEAT & BACK PADS
SEAT PAD: Pull buckle strap through slot in seat pad, then fasten eight connectors.
BACK PAD: Pull waist and shoulder straps through slots in back pad, then fasten six connectors.

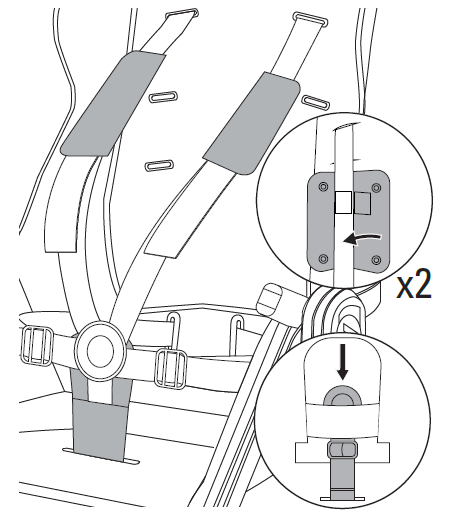

05. INSTALL NEW HARNESS & SHOULDER COVERS
Slide on harness buckle cover.
Attach shoulder covers and snap to close.

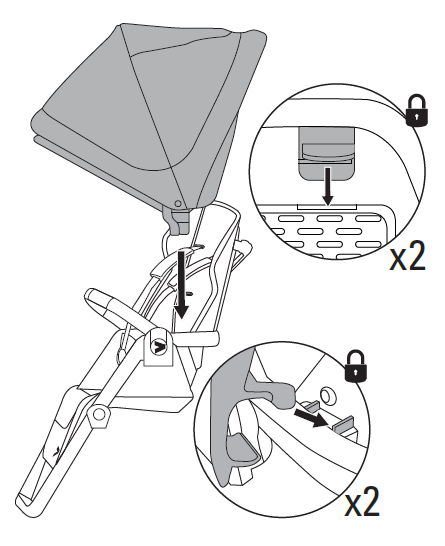

06. INSTALL NEW CANOPY
Click canopy connector into each side of support bar.
Align, then insert tabs into seat back.

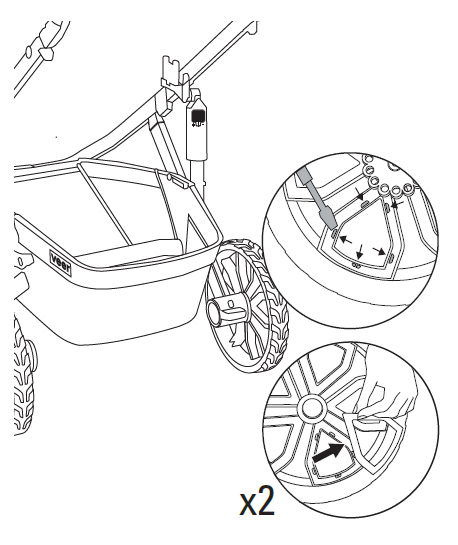

07. REMOVE WHEEL INSERT
From the back of the wheel, use a flathead screwdriver to pop out existing wheel insert.

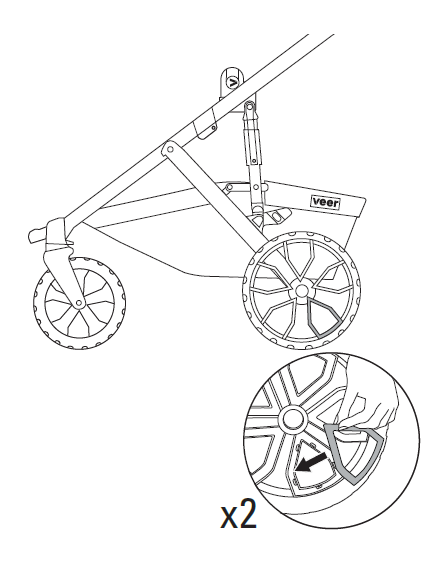

08. INSTALL NEW WHEEL INSERTS
Gently press wheel inserts in until they are secure.
P/N: D02032303
