Cruiser Beach Wheel Tire Replacement (Large)Updated 2 days ago

REPAIR GUIDE

Use this guide to replace the tire and rim on the large beach wheels for your Cruiser

UPDATED JUN 2025




Required Tools

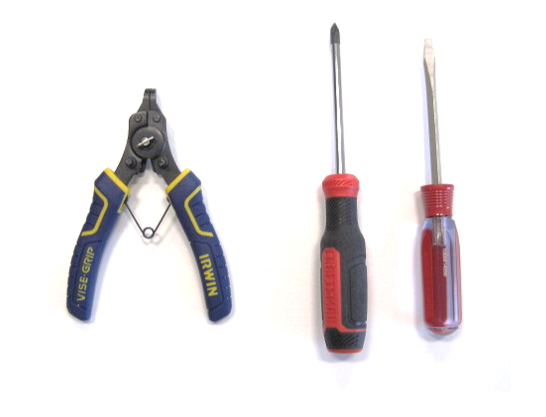

  • Retaining ring pliers, #2 Philips head screw driver, Slotted/flat screw driver

Required Replacement parts

  • Beach Wheel Large Tire Replacement




Procedure

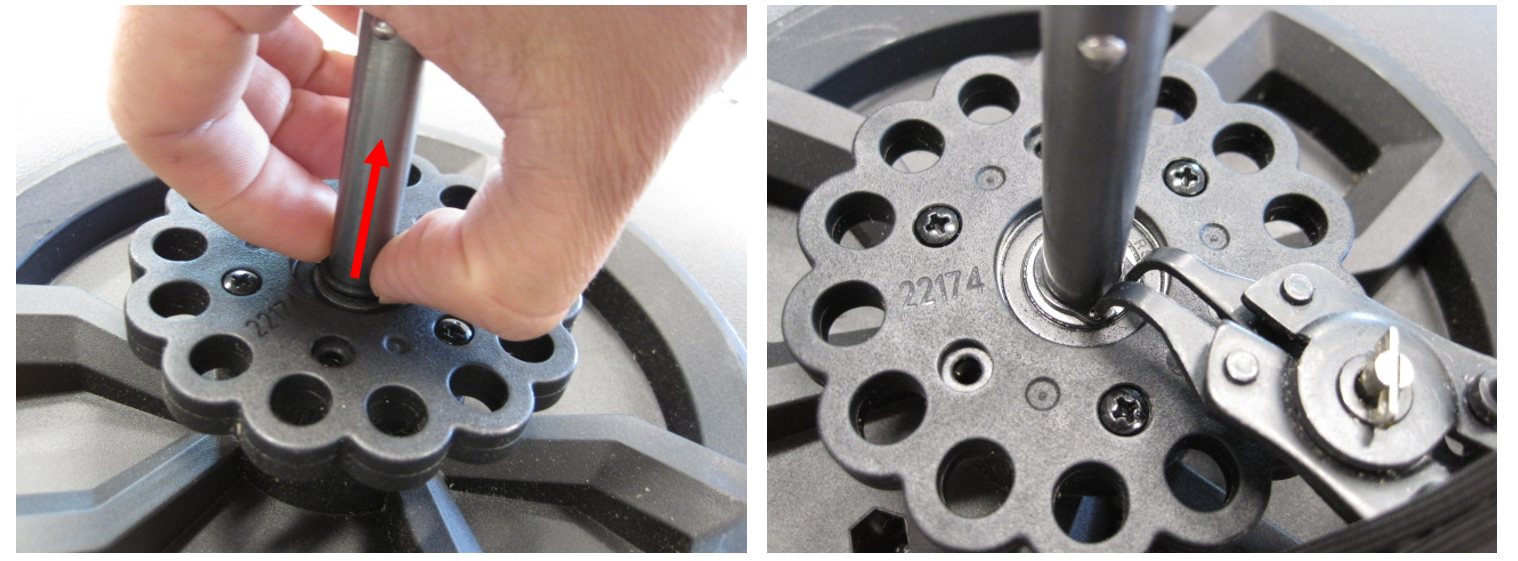

/01:  Remove rubber o-ring cushion by sliding it off with fingers. Then use the retaining ring pliers to remove the retaining ring.

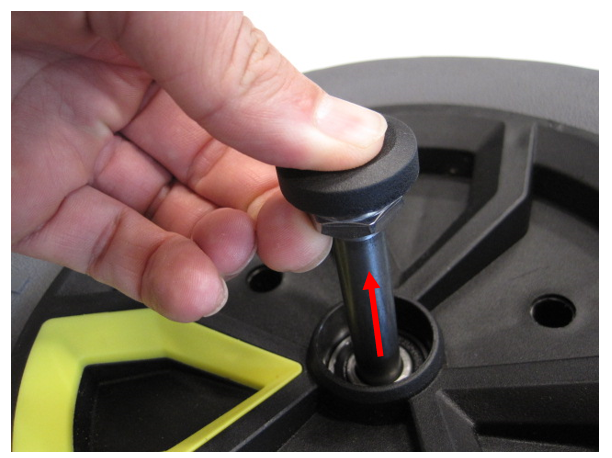

/02:  While pressing the wheel button, slide the axle assembly out.

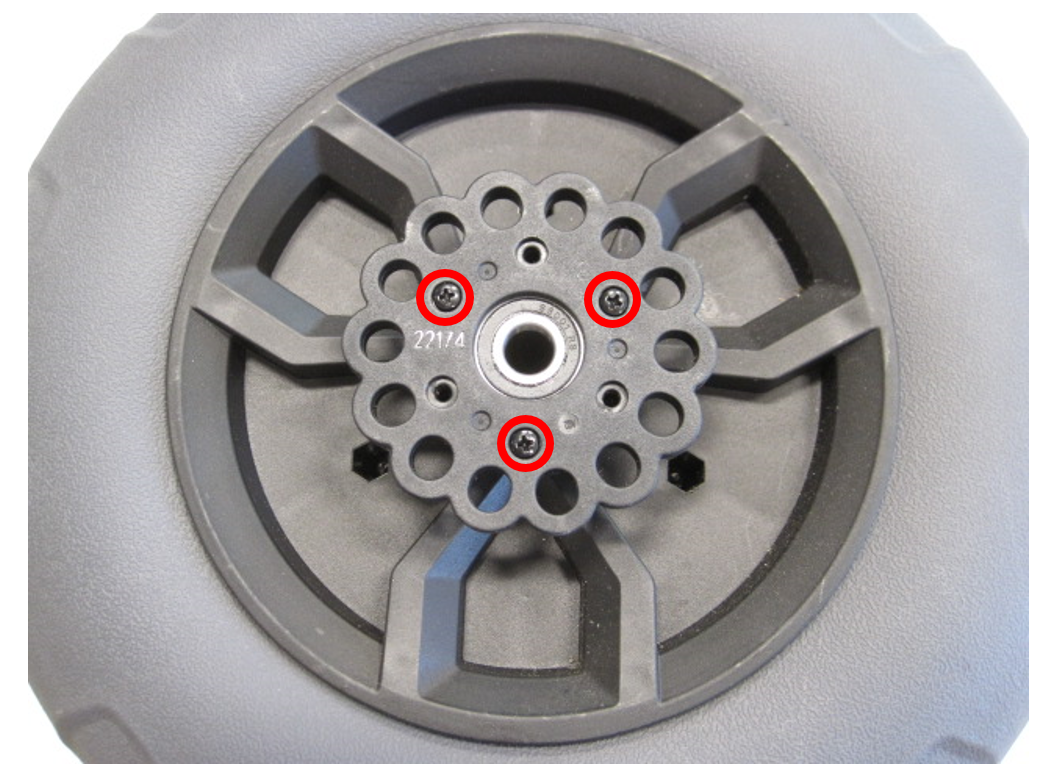

/03:  Use the Philips screw driver to remove the 3x screws and remove the brake ring.

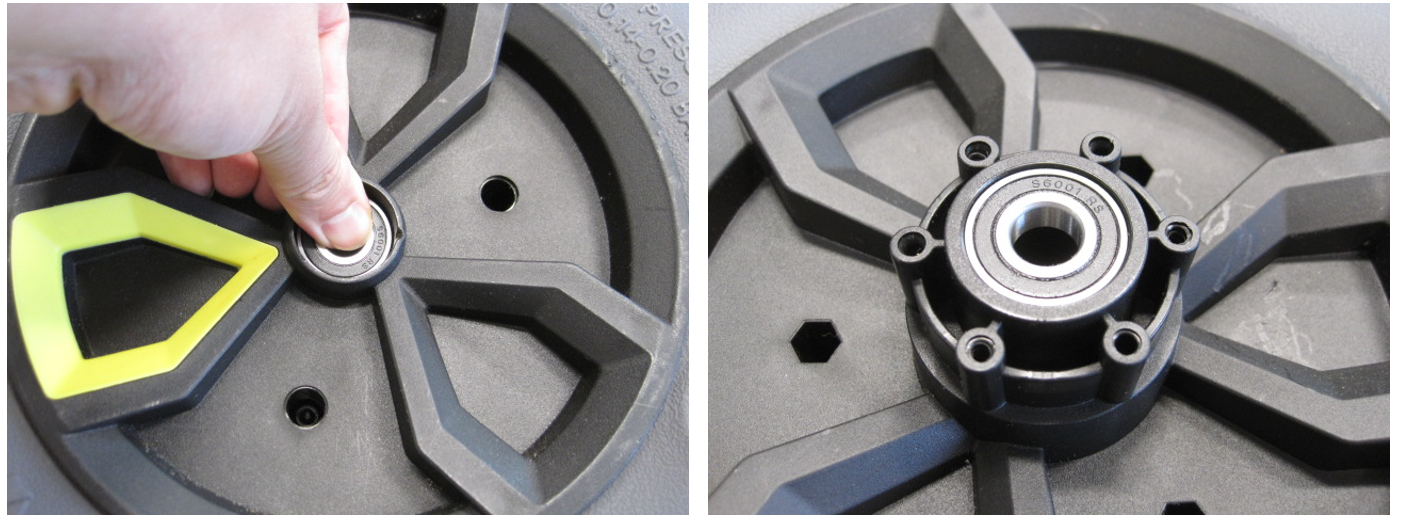

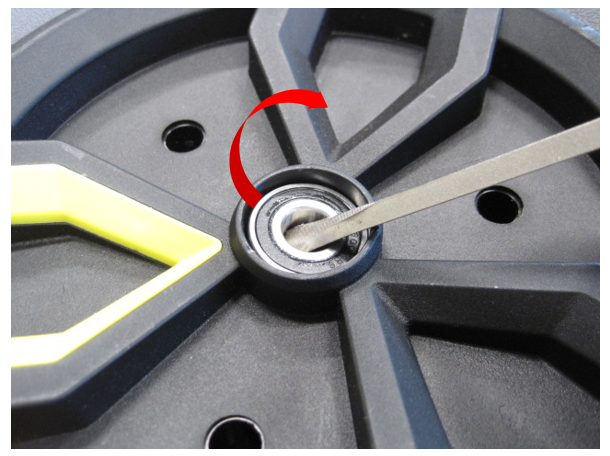

/04:  Use the flat screw driver to remove the bearings on each side.


/05:  Re-assemble these parts in reverse order on the new large wheel assembly. Make sure the bearings are seated fully into the rim.
